Description

Working principle

Special design for PTFE polymer powder mix with fiberglass, graphite, carbon, bronze etc. without temperature rising.

Driven by the drive shaft, the loading cylinder carries on the compound movement such as translation rotation and tumbling, which makes the material move along the cylinder in the three directions of circumferential, radial and axial, so as to realize the mutual flow, diffusion, accumulation and doping of various materials and achieve the purpose of uniform mixing. The mixing barrel moves in multiple directions, there is no centrifugal force acting on the material, as well as no phenomena of gravity segregation, delaminaton and accumulation of materials so that the mixing rate can be up to 99.9% for the materials with big difference in terms of specific gravity. It’s an ideal product compared with other various mixers.

Performance description:

1,The frame is welded by section steel, and the outer seal is stainless steel plate. Reasonable structure, can effectively stabilize the whole machine.

2, rotation by the motor belt disk, belt, worm gear reducer, sprocket, chain composition, reasonable structure, smooth operation.

3, the mixing cylinder is made of stainless steel, and its inner and outer walls are polished. The cylinder body has good air tightness, smooth and clean, no dead Angle, no residue, easy to clean.

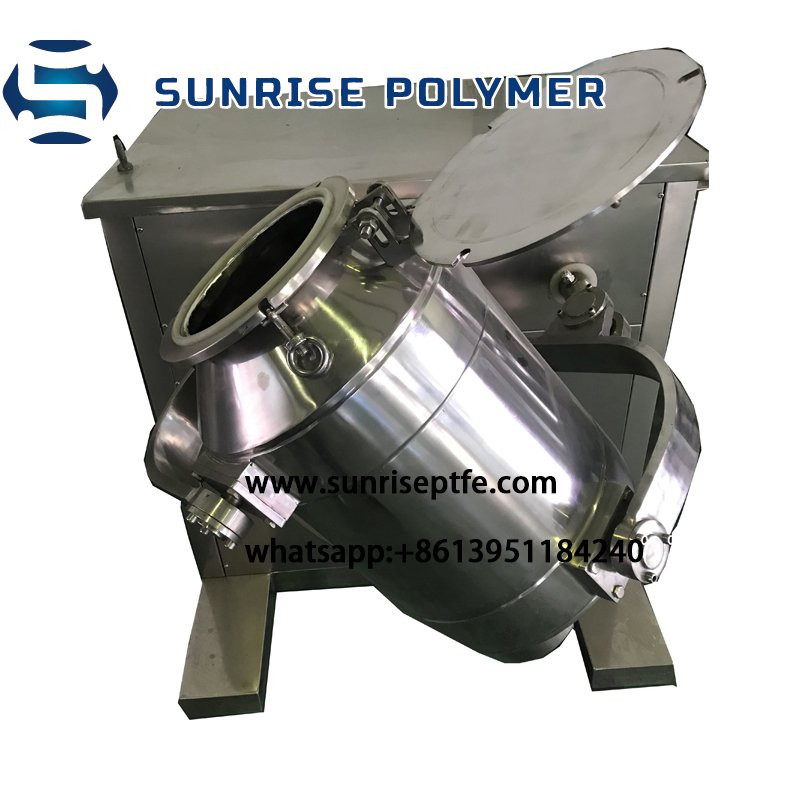

4, the feed port adopts flange, silicone rubber seal, easy to operate.

5, the discharge port adopts disc valve, good sealing performance, convenient discharge, simple operation, no residue.

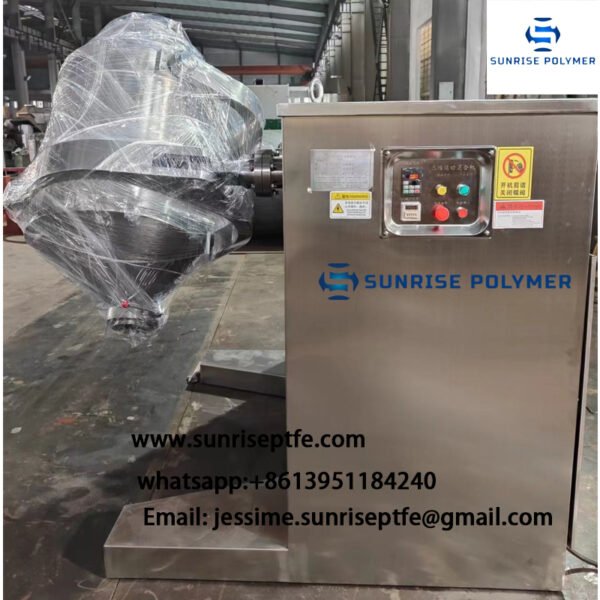

6, the control button, simple operation, convenient, easy to maintain.

7, The machine has large volume, high mixing uniformity, easy discharge, easy cleaning, comply with GMP requirements. Special design for PTFE polymer powder mix with fiberglass, graphite, carbon, bronze etc. without temperature rising.

8, the detachability of the equipment is improved, which is convenient for the maintenance and maintenance of the transmission parts.

Technical parameters:

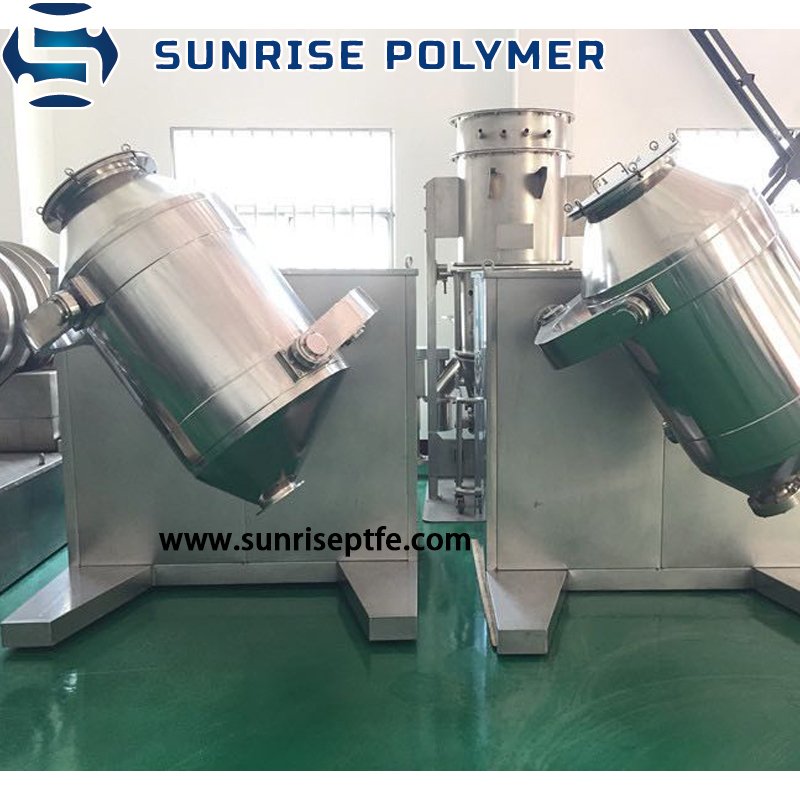

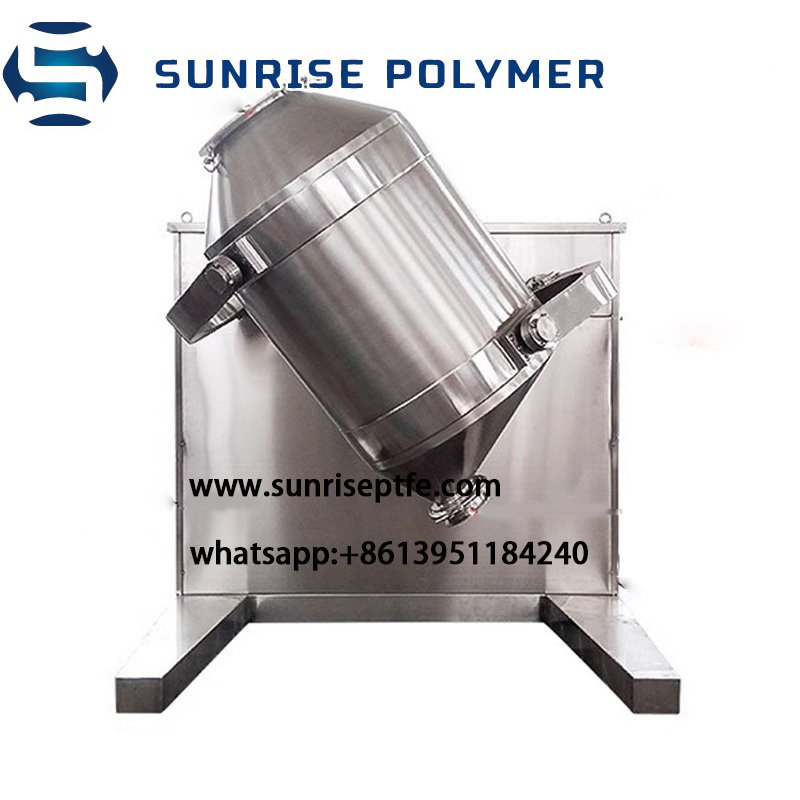

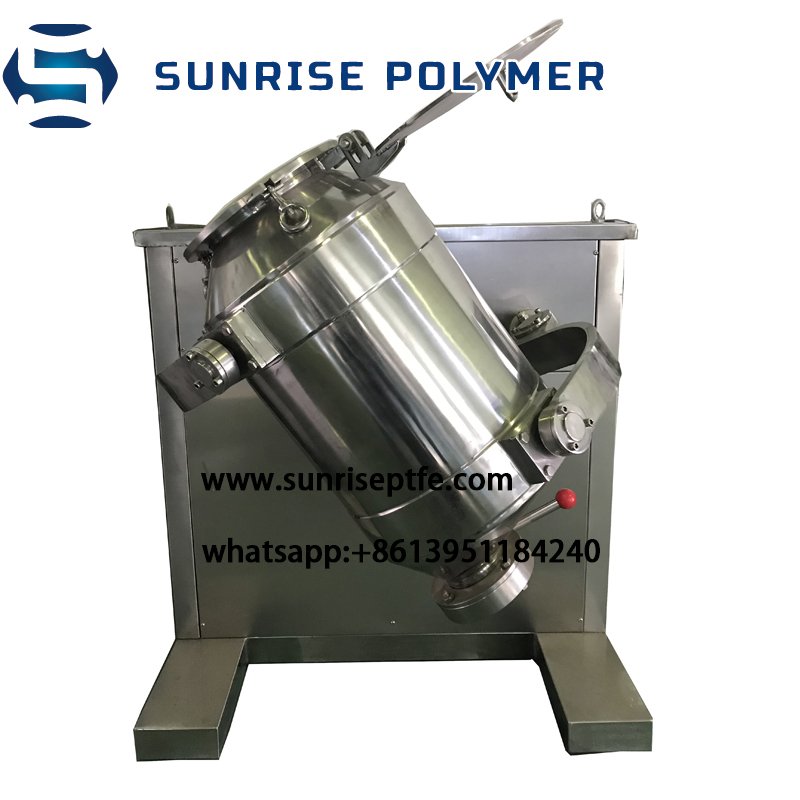

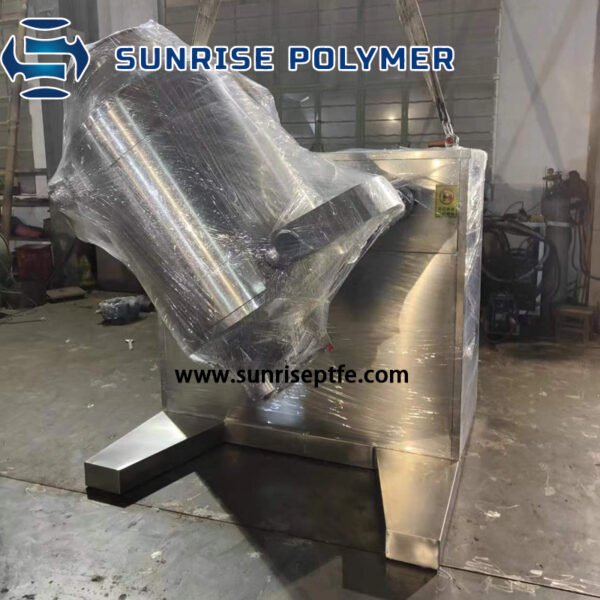

Equipment type: SYH-50 three dimensional Mixer

Barrel Volume (L): 50

Loading Volume (L): 30

Maximum loading weight (kg): 30

Spindle speed (rpm): 0-10

Motor power (kw): 0.75

Overall dimensions (mm): L1400 x W 1000 x H1200

Total weight (kg): 300

Other style SYH-100, SYH-200 etc are available, for more information, pls contact us at jessime.sunriseptfe@gmail.com or whatsapp at +8613951184240
