Description

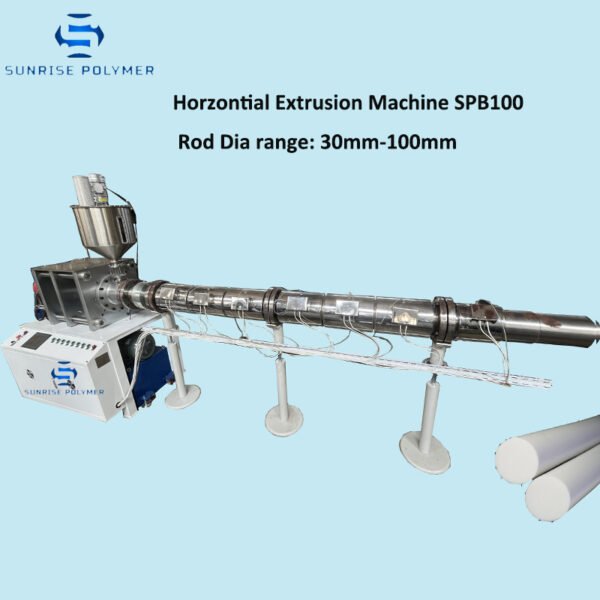

The PTFE (UHMWPE) ram rod extruder SPB100 continues to be enhanced, improving intelligence, stability, and efficiency. The equipment is operated through a PLC system, ensuring simplicity and automation for easy user operation. Our factory offers various design options,capable of flexibly addressing different user requirements, and supports customization to meet specific production needs. The SPB100 ram extruder operates stably over the long term, with an optimized design that minimizes noise during operation. This low-noise design not only improves the working environment but also effectively reduces energy consumption. During pressure maintenance, the equipment can save electricity and energy, significantly lowering operating costs and increasing overall production efficiency. Furthermore, the high stability and intelligent control of this device ensure a highly consistent and accurate production process, further enhancing product quality and production efficiency.

Features of PTFE (UHMWPE) Rod Extruder Machine SPB100:

1. Continuous Technological Optimization: Through continuous improvement, the equipment has become smarter, more stable, and efficient, meeting modern production requirements.
2. PLC Intelligent Control: The machine employs a PLC system for intelligent control, enabling fully automated operation with simple and convenient handling.
3. Diverse Design Options: The equipment offers various design schemes, allowing customization according to customer needs, flexibly adapting to different production environments.
4. Low Noise and Energy Saving: The device maintains stability during long-term operation, producing low noise and effectively saving electricity and energy during the pressing process, thereby reducing production costs.
5. Corrosion Resistance and Long Lifespan: The equipment’s operation surface is appliedwith stainless steel, and the mold is manufactured with special treated, offering excellent corrosion resistance and durability, ensuring a long service life.
6. Compact Design with Small Footprint: The machine’s design is concise, taking up minimal space, which saves on production area.
7. Excellent Extrusion Performance: The extruded products exhibit superior performance in density, tensile strength, and elongation force, guaranteeing high-quality production.
8. Continuous Extrusion with Teflon Pusher: Using a Teflon pusher for continuous extrusion forming, precise cutting is performed based on length, ensuring production efficiency and product accuracy.
9. Complete Mold System Provided: A full set of mold system accessories is offered, including heating sintering systems, cooling systems, temperature controllers, rod supports, etc., ensuring stable operation and product quality of the equipment.


   Equipment Parameter

   Machine Model	SPB30	SPB100	SPB160
   Process	Vertical Extrusion	Horizontal Extrusion
   Power KW(Electric Motor)	14	24	33
   Cylinder Pressure(Ton)	40 TON	40 TON	80 TON
   Rod Range Dia(mm)	4-30	40-100	80-150 (160 )
   Extruded Rod Length	Continue extrude with unlimited length
   Controller	PLC+Touch Screen	PLC+Touch Screen	PLC+Touch Screen
   Output(Kg/h)	7+	8+	10+
   Voltage/ PH/Hz	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P
   Electricity Consumption(KW/h)	2+	2.5+	3+
   Temperature zone	3-5	4-8	8-12
   Machine Weight(Kg)	930	960	1220
   Machine Height (mm)	2150	1800	1900
   Machine Floor area (m2 )	3.5	7	10
   Mold	The mold size is customized according to customer specifications. The complete mold set includes the mold body, extrusion head, connection flange, a complete set of high-temperature heating rings, a complete set of sensors, a cooling water jacket system, and the high-temperature connection line, mold and product support.The surface finish is specially treated to be smooth, durable, and corrosion resistant. The thickness of the insulation cotton is more than 5mm, and the heating thickness is more than 10mm.
