Description

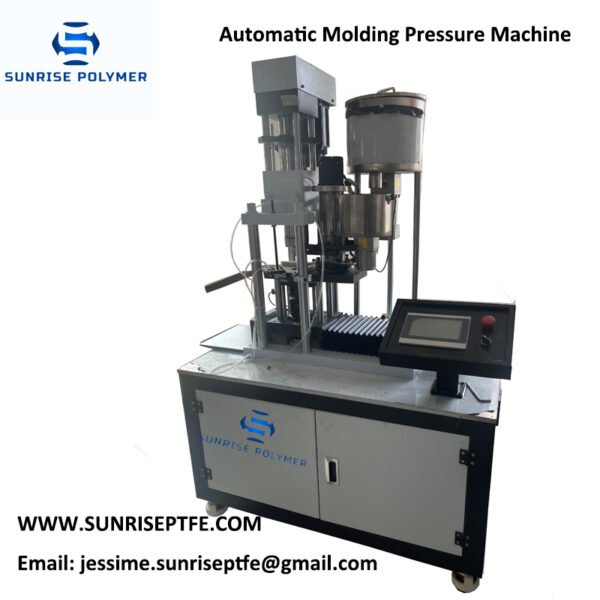

1, Automatic Gasket Molding press Machine features:
1.1, Efficient production, labor saving: 1000-2000 pieces/hour, automatic feeding, automatic ejecting products, one worker can monitor 15 equipment/shit
1.2, Energy saving: Total power is only 2.2 KW
1.3, Environmental protection: automatic filling powder, powder does not splash
1.4,Intelligent control: Gaskets are produced by controlling the amount of power
1.5, The equipment is easy to operate and the mold is easy to replace
1.6, Longer working life: using high-quality components, no heat during work, long service life of equipment.
2, Production Specification
| Style | SPD-168 |
| Suitable for | Maximum outside diameter Φ50-120mm ,
Maximum thickness :12mm PTFE washer |
| Feeding method | Stainless steel segmented double barrel,
transfer mold feeding, time control feeding |
| Motor power | 7.5Kw |
| Discharge method | Cylinder ejection,air discharge.
9pcs per minute according to the conventional process; |
| Control method | Touch screen +PLC control |
| Notes | We will design the automatic molding pressure machine according to customer’s requirment. |
3,Applications For PTFE Gaskets
.1, Petrochemical industry: PTFE gaskets are widely used in the petrochemical industry of fluid pipelines, pump valves and other equipment seal.
3.2, Pharmaceutical industry: Because the PTFE gasket has non-toxic, insoluble, non-absorbent and other excellent characteristics, it is used in the sealing of medical equipment.
3.3, Food and beverage industry: PTFE gaskets are used in the sealing of food and beverage production lines to prevent cross-contamination.
3.4, Aerospace industry: PTFE gaskets are widely used in rocket engines, fuel storage and delivery lines and other key parts of the seal.
3.5, Electrical industry: Due to the excellent insulation performance of PTFE gaskets, they are used to seal electrical equipment under harsh environmental conditions such as high pressure and high temperature.
For more PTFE machines, pls contact us via Email: info@sunriseptfe.com, jessime.sunriseptfe@gmail.com, or whatsapp +8613951184240
